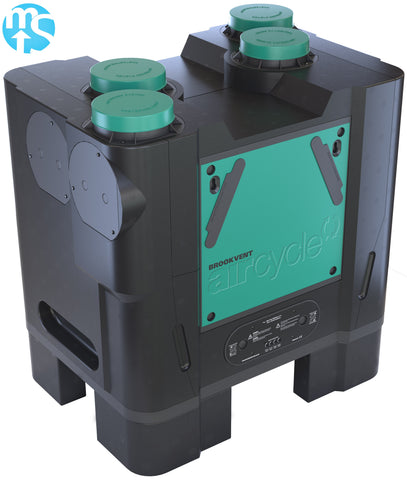

Brookvent Aircycle 3.1 FMSB Whole House MVHR System

£1,500.00

The aircycle 3.1 operates by efficiently recovering heat from the air extracted from wet rooms (bathroom, kitchen etc.) that would normally be expelled to the atmosphere.

This heat is then transferred to the fresh air being drawn into the system, which is then filtered and distributed throughout the habitable rooms (living room, bedroom etc.).

The aircycle 3.1 can significantly reduce the space heating demand of a property whilst also delivering a healthier and more comfortable indoor environment for the occupier.

This model has the optional summer bypass fitted.

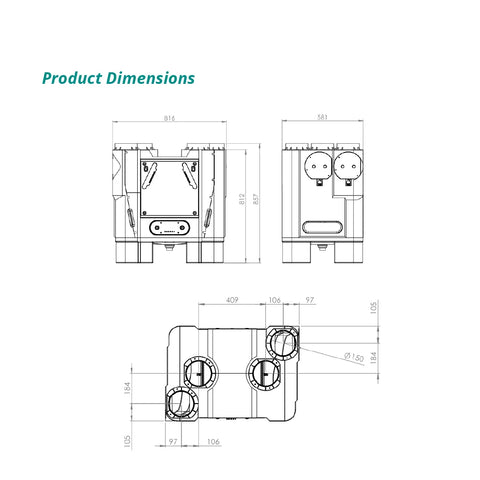

Dimensions: H 857mm x W 816mm x D 581mm

Weight: 29kg

Materials:

• Main enclosure: High density, impact resistant EPP (Expanded Polypropylene)

• PCB & control panel enclosure: ABS FR

• Drainage tray: PP

• Filters: Polyester media (G2 up to G4)

• Filter cover: Rubber

• Mounting Bracket: Zinc Plated Steel

• Fan Scrolls: ABS

Electrical:

• 230v EC Low energy, backward curved centrifugal fans

• PCB c/w potentiometer control

• Supplied complete with 4 core flying lead: (Live: Brown), (Neutral: Black),

(Earth: Yellow & Green), (230v Switched Live (Boost): Grey)

• Plug and play components for easy maintenance

Controls:

• Independent fan speed control (Trickle and boost settings for each fan)

• Single 230v boost input (Light switch, humidistat, PIR, etc.)

• Boost over-run timer, adjustable between 0 - 15 min.

• In-built humidity sensor (Boost activation) Variable: 60% - 100% RH, factory set: 70%

• Frost protection, factory set at 5 Degrees Cel.

• Tempering summer bypass (Automatic variation between

20 - 27 Degrees Cel.)

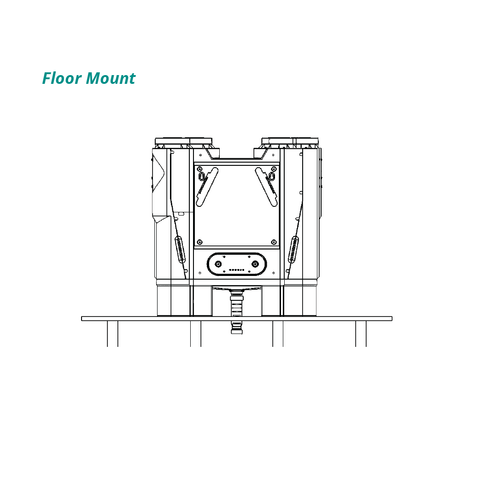

Installation: Wall or Floor Mount

Standards:

Fully complies with Building Regulations for UK & Ireland

SAP Appendix Q Listed | Energy Savings Trust Best Practice | CE

Guarantee Period: 5 Years
